SIMPLEX

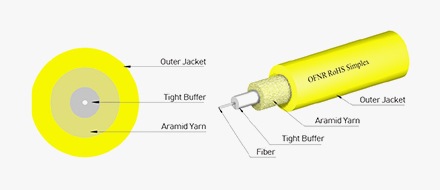

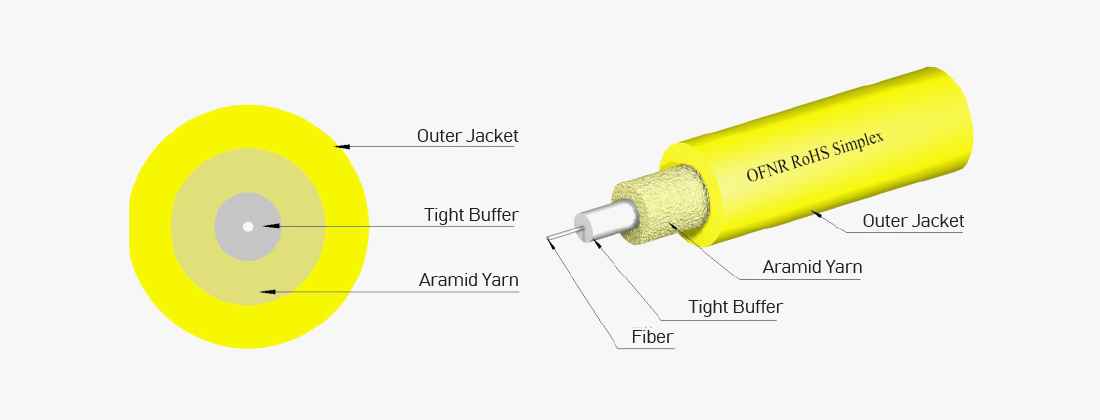

Simplex Cables are designed for general patch cord production where consistency and uniformity are vital for fast efficient terminations. Simplex cables are offered in several outside diameter sizes to meet all tooling and termination requirements.
FEATURES
- 3mm, 2mm, 1.8mm and 1.6mm OD sizes to meet all patch cord applications
- Easy strip-ability of buffer
- Available in custom colors
APPLICATIONS
Riser, PlenumSPECIFICATIONS
| ALSO AVAILABLE UPON REQUEST | OFNP | |||
| Optical fibers compliant with ITU-T G.657.A/B standards | Storage Temp | -40/+70℃ | Operating Temp | 0/+70℃ |
| LSZH Jacket | OFNR | |||
| 1.2mm OD sizes | Storage Temp | -40/+70℃ | Operating Temp | -20/+70℃ |
SINGLE MODE OS2(ITU-T G.657.A1) & MULTI MODE(OM1, OM2, OM3, OM4)
| Part Number | Fiber Type | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| 1.6mm | S09SX01CA1NPYL16 | SM | OFNP | 1.6 | 1 | 3.2 | 10mm |
| S09SX01CA1NRYL16 | SM | OFNR | 1.6 | 1 | 2.7 | 10mm | |
| M62SX01CM1NPOR16 | OM1 | OFNP | 1.6 | 1 | 3.2 | 10mm | |
| M62SX01CM1NROR16 | OM1 | OFNR | 1.6 | 1 | 2.7 | 10mm | |
| M50SX01CM2NPOR16 | OM2 | OFNP | 1.6 | 1 | 3.2 | 7.5mm | |
| M50SX01CM2NROR16 | OM2 | OFNR | 1.6 | 1 | 2.7 | 7.5mm | |
| M50SX01CM3NPAQ16 | OM3 | OFNP | 1.6 | 1 | 3.2 | 7.5mm | |
| M50SX01CM3NRAQ16 | OM3 | OFNR | 1.6 | 1 | 2.7 | 7.5mm | |
| M50SX01CM4NPAQ16 | OM4 | OFNP | 1.6 | 1 | 3.2 | 7.5mm | |
| M50SX01CM4NRAQ16 | OM4 | OFNR | 1.6 | 1 | 2.7 | 7.5mm | |
| Part Number | Fiber Type | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| 1.8mm | S09SX01CA1NPYL18 | SM | OFNP | 1.8 | 1 | 4.5 | 10mm |
| S09SX01CA1NRYL18 | SM | OFNR | 1.8 | 1 | 4.1 | 10mm | |
| M62SX01CM1NPOR18 | OM1 | OFNP | 1.8 | 1 | 4.5 | 10mm | |
| M62SX01CM1NROR18 | OM1 | OFNR | 1.8 | 1 | 4.1 | 10mm | |
| M50SX01CM2NPOR18 | OM2 | OFNP | 1.8 | 1 | 4.5 | 7.5mm | |
| M50SX01CM2NROR18 | OM2 | OFNR | 1.8 | 1 | 4.1 | 7.5mm | |
| M50SX01CM3NPAQ18 | OM3 | OFNP | 1.8 | 1 | 4.5 | 7.5mm | |
| M50SX01CM3NRAQ18 | OM3 | OFNR | 1.8 | 1 | 4.5 | 7.5mm | |
| M50SX01CM4NPAQ18 | OM4 | OFNP | 1.8 | 1 | 4.5 | 7.5mm | |
| M50SX01CM4NRAQ18 | OM4 | OFNR | 1.8 | 1 | 4.1 | 7.5mm | |
| Part Number | Fiber Type | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm |
|
| 2.0mm | S09SX01CA1NPYL20 | SM | OFNP | 1.95 | 1 | 6.4 | 10mm |
| S09SX01CA1NRYL20 | SM | OFNR | 1.95 | 1 | 5.9 | 10mm | |
| M62SX01CM1NPOR20 | OM1 | OFNP | 1.95 | 1 | 6.4 | 10mm | |
| M62SX01CM1NROR20 | OM1 | OFNR | 1.95 | 1 | 5.9 | 10mm | |
| M50SX01CM2NPOR20 | OM2 | OFNP | 1.95 | 1 | 6.4 | 7.5mm | |
| M50SX01CM2NROR20 | OM2 | OFNR | 1.95 | 1 | 5.9 | 7.5mm | |
| M50SX01CM3NPAQ20 | OM3 | OFNP | 1.95 | 1 | 6.4 | 7.5mm | |
| M50SX01CM3NRAQ20 | OM3 | OFNR | 1.95 | 1 | 5.9 | 7.5mm | |
| M50SX01CM4NPAQ20 | OM4 | OFNP | 1.95 | 1 | 6.4 | 7.5mm | |
| M50SX01CM4NRAQ20 | OM4 | OFNR | 1.95 | 1 | 5.9 | 7.5mm | |
| Part Number | Fiber Type | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| 1.8mm | S09SX01CA1NPYL30 | SM | OFNP | 2.95 | 1 | 9.0 | 10mm |
| S09SX01CA1NRYL30 | SM | OFNR | 2.95 | 1 | 7.7 | 10mm | |
| M62SX01CM1NPOR30 | OM1 | OFNP | 2.95 | 1 | 9.0 | 10mm | |
| M62SX01CM1NROR30 | OM1 | OFNR | 2.95 | 1 | 7.7 | 10mm | |
| M50SX01CM2NPOR30 | OM2 | OFNP | 2.95 | 1 | 9.0 | 7.5mm | |
| M50SX01CM2NROR30 | OM2 | OFNR | 2.95 | 1 | 7.7 | 7.5mm | |
| M50SX01CM3NPAQ30 | OM3 | OFNP | 2.95 | 1 | 9.0 | 7.5mm | |
| M50SX01CM3NRAQ30 | OM3 | OFNR | 2.95 | 1 | 7.7 | 7.5mm | |
| M50SX01CM4NPAQ30 | OM4 | OFNP | 2.95 | 1 | 9.0 | 7.5mm | |
| M50SX01CM4NRAQ30 | OM4 | OFNR | 2.95 | 1 | 7.7 | 7.5mm | |
