DISTRIBUTION CABLE
Distribution Cables area designed for general indoor use. Available in all fiber types, a thick durable jacket offers excellent strength and protection during installations and restorations. The 900 um color coded tight buffers allow for easy identification and termination. Cables are available in OFNR and OFNP rated constructions and also a LSZH jacket.
FEATURES

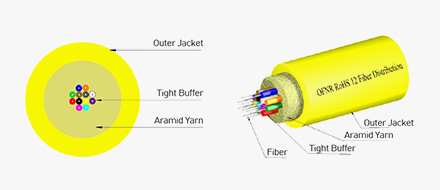

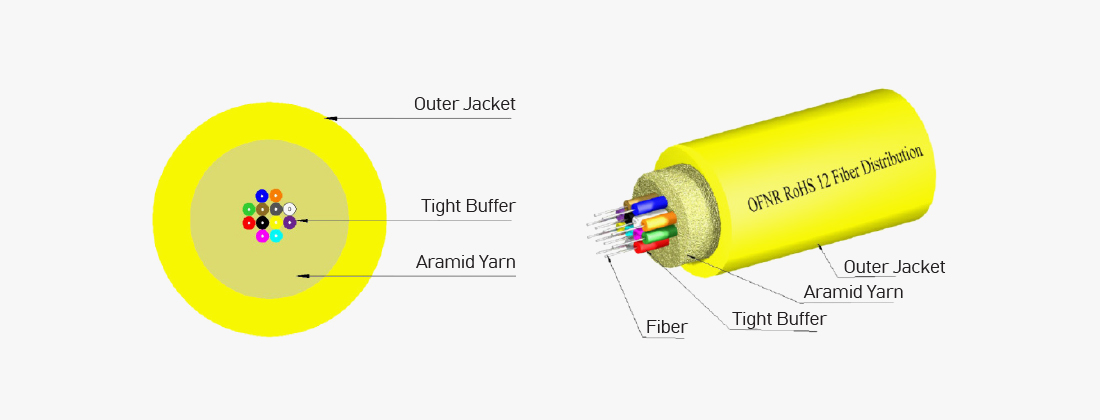

- 900um tight buffer, Aramid Yarn Strength Members
- Exclusive use of Corning optical fibers
- Jacket print ensures product identification and fiber compatibility
- Buffers strip consistently, helpful for onsite termination
- Durable jacket offers added protection during installation and in rugged use applications
APPLICATIONS
Riser, PlenumSPECIFICATIONS
| ALSO AVAILABLE UPON REQUEST | OFNP | |||
| 50/125 MULTIMODE ClearCurve® OM4 | Storage Temp | -40/+70℃ | Operating Temp | 0/+70℃ |
| LSZH Jacket | OFNR | |||
| Optical fibers compliant with ITU-T G.657.A/B standards | Storage Temp | -40/+70℃ | Operating Temp | -20/+70℃ |
SINGLE MODE OS2(ITU-T G.657.A1)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
S09DI02CA1NRYL
OFNR
4.4
2
15
6.6/4.4
S09DI04CA1NRYL
OFNR
4.8
4
10
7.2/4.8
S09DI06CA1NRYL
OFNR
5.3
6
25
8.0/5.3
S09DI08CA1NRYL
OFNR
5.8
8
32
8.7/5.8
S09DI12CA1NRYL
OFNR
6.3
12
43
9.5/6.3
S09DI24CA1NRYL
OFNR
8.3
24
54
12.5/8.3
S09DI48CA1NRYL
OFNR
15.4
48
186
23.1/15.4
S09DI72CA1NRYL
OFNR
20
72
315
30/20.0
PLENUM
S09DI02CA1NPYL
OFNP
4.4
2
18
6.6/4.4
S09DI04CA1NPYL
OFNP
4.8
4
24
7.2/4.8
S09DI06CA1NPYL
OFNP
5.3
6
30
8.0/5.3
S09DI08CA1NPYL
OFNP
5.8
8
40
8.7/5.8
S09DI12CA1NPYL
OFNP
6.3
12
52
9.5/6.3
S09DI24CA1NPYL
OFNP
8.3
24
64
12.5/8.3
S09DI48CA1NPYL
OFNP
15.4
48
218
23.1/15.4
S09DI72CA1NPYL
OFNP
20
72
347
30/20.0
62.5/125 MULTIMODE OM1
Part Number
Cable Rating
Norminal Diameter
>(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M62DI02CM1NROR
OFNR
4.4
2
15
6.6/4.4
M62DI04CM1NROR
OFNR
4.8
4
20
7.2/4.8
M62DI06CM1NROR
OFNR
5.3
6
25
8.0/5.3
M62DI08CM1NROR
OFNR
5.8
8
32
8.7/5.8
M62DI12CM1NROR
OFNR
6.3
12
43
9.5/6.3
M62DI24CM1NROR
OFNR
8.3
24
54
12.5/8.3
M62DI48CM1NROR
OFNR
15.4
48
186
23.1/15.4
M62DI72CM1NROR
OFNR
20
72
315
30/20.0
PLENUM
M62DI02CM1NPOR
OFNP
4.4
2
18
6.6/4.4
M62DI04CM1NPOR
OFNP
4.8
4
24
7.2/4.8
M62DI06CM1NPOR
OFNP
5.3
6
30
8.0/5.3
M62DI08CM1NPOR
OFNP
5.8
8
40
8.7/5.8
M62DI12CM1NPOR
OFNP
6.3
12
52
9.5/6.3
M62DI24CM1NPOR
OFNP
8.3
24
64
12.5/8.3
M62DI48CM1NPOR
OFNP
15.4
48
218
23.1/15.4
M62DI72CM1NPOR
OFNP
20
72
347
30/20.0
50/125 MULTIMODE OM2
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50DI02CM2NROR
OFNR
4.4
2
15
6.6/4.4
M50DI04CM2NROR
OFNR
4.8
4
20
7.2/4.8
M50DI06CM2NROR
OFNR
5.3
6
25
8.0/5.3
M50DI08CM2NROR
OFNR
5.8
8
32
8.7/5.8
M50DI12CM2NROR
OFNR
6.3
12
43
9.5/6.3
M50DI24CM2NROR
OFNR
8.3
24
54
12.5/8.3
M50DI48CM2NROR
OFNR
15.4
48
186
23.1/15.4
M50DI72CM2NROR
OFNR
20
72
315
30/20.0
PLENUM
M50DI02CM2NPOR
OFNP
4.4
2
18
6.6/4.4
M50DI04CM2NPOR
OFNP
4.8
4
24
7.2/4.8
M50DI06CM2NPOR
OFNP
5.3
6
30
8.0/5.3
M50DI08CM2NPOR
OFNP
5.8
8
40
8.7/5.8
M50DI12CM2NPOR
OFNP
6.3
12
52
9.5/6.3
M50DI24CM2NPOR
OFNP
8.3
24
64
12.5/8.3
M50DI48CM2NPOR
OFNP
15.4
48
218
23.1/15.4
M50DI72CM2NPOR
OFNP
20
72
347
30/20.0
50/125 MULTIMODE OM3
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50DI02CM3NRAQ
OFNR
4.4
2
15
6.6/4.4
M50DI04CM3NRAQ
OFNR
4.8
4
20
7.2/4.8
M50DI06CM3NRAQ
OFNR
5.3
6
25
8.0/5.3
M50DI08CM3NRAQ
OFNR
5.8
8
32
8.7/5.8
M50DI12CM3NRAQ
OFNR
6.3
12
43
9.5/6.3
M50DI24CM3NRAQ
OFNR
8.3
24
54
12.5/8.3
M50DI48CM3NRAQ
OFNR
15.4
48
186
23.1/15.4
M50DI72CM3NRAQ
OFNR
20
72
315
30/20.0
PLENUM
M50DI02CM3NPAQ
OFNP
4.4
2
18
6.6/4.4
M50DI04CM3NPAQ
OFNP
4.8
4
24
7.2/4.8
M50DI06CM3NPAQ
OFNP
5.3
6
30
8.0/5.3
M50DI08CM3NPAQ
OFNP
5.8
8
40
8.7/5.8
M50DI12CM3NPAQ
OFNP
6.3
12
52
9.5/6.3
M50DI24CM3NPAQ
OFNP
8.3
24
64
12.5/8.3
M50DI48CM3NPAQ
OFNP
15.4
48
218
23.1/15.4
M50DI72CM3NPAQ
OFNP
20
72
347
30/20.0
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | S09DI02CA1NRYL | OFNR | 4.4 | 2 | 15 | 6.6/4.4 |
| S09DI04CA1NRYL | OFNR | 4.8 | 4 | 10 | 7.2/4.8 | |
| S09DI06CA1NRYL | OFNR | 5.3 | 6 | 25 | 8.0/5.3 | |
| S09DI08CA1NRYL | OFNR | 5.8 | 8 | 32 | 8.7/5.8 | |
| S09DI12CA1NRYL | OFNR | 6.3 | 12 | 43 | 9.5/6.3 | |
| S09DI24CA1NRYL | OFNR | 8.3 | 24 | 54 | 12.5/8.3 | |
| S09DI48CA1NRYL | OFNR | 15.4 | 48 | 186 | 23.1/15.4 | |
| S09DI72CA1NRYL | OFNR | 20 | 72 | 315 | 30/20.0 | |
| PLENUM | S09DI02CA1NPYL | OFNP | 4.4 | 2 | 18 | 6.6/4.4 |
| S09DI04CA1NPYL | OFNP | 4.8 | 4 | 24 | 7.2/4.8 | |
| S09DI06CA1NPYL | OFNP | 5.3 | 6 | 30 | 8.0/5.3 | |
| S09DI08CA1NPYL | OFNP | 5.8 | 8 | 40 | 8.7/5.8 | |
| S09DI12CA1NPYL | OFNP | 6.3 | 12 | 52 | 9.5/6.3 | |
| S09DI24CA1NPYL | OFNP | 8.3 | 24 | 64 | 12.5/8.3 | |
| S09DI48CA1NPYL | OFNP | 15.4 | 48 | 218 | 23.1/15.4 | |
| S09DI72CA1NPYL | OFNP | 20 | 72 | 347 | 30/20.0 | |
| Part Number | Cable Rating | Norminal Diameter >(mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | M62DI02CM1NROR | OFNR | 4.4 | 2 | 15 | 6.6/4.4 |
| M62DI04CM1NROR | OFNR | 4.8 | 4 | 20 | 7.2/4.8 | |
| M62DI06CM1NROR | OFNR | 5.3 | 6 | 25 | 8.0/5.3 | |
| M62DI08CM1NROR | OFNR | 5.8 | 8 | 32 | 8.7/5.8 | |
| M62DI12CM1NROR | OFNR | 6.3 | 12 | 43 | 9.5/6.3 | |
| M62DI24CM1NROR | OFNR | 8.3 | 24 | 54 | 12.5/8.3 | |
| M62DI48CM1NROR | OFNR | 15.4 | 48 | 186 | 23.1/15.4 | |
| M62DI72CM1NROR | OFNR | 20 | 72 | 315 | 30/20.0 | |
| PLENUM | M62DI02CM1NPOR | OFNP | 4.4 | 2 | 18 | 6.6/4.4 |
| M62DI04CM1NPOR | OFNP | 4.8 | 4 | 24 | 7.2/4.8 | |
| M62DI06CM1NPOR | OFNP | 5.3 | 6 | 30 | 8.0/5.3 | |
| M62DI08CM1NPOR | OFNP | 5.8 | 8 | 40 | 8.7/5.8 | |
| M62DI12CM1NPOR | OFNP | 6.3 | 12 | 52 | 9.5/6.3 | |
| M62DI24CM1NPOR | OFNP | 8.3 | 24 | 64 | 12.5/8.3 | |
| M62DI48CM1NPOR | OFNP | 15.4 | 48 | 218 | 23.1/15.4 | |
| M62DI72CM1NPOR | OFNP | 20 | 72 | 347 | 30/20.0 | |
50/125 MULTIMODE OM2
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50DI02CM2NROR
OFNR
4.4
2
15
6.6/4.4
M50DI04CM2NROR
OFNR
4.8
4
20
7.2/4.8
M50DI06CM2NROR
OFNR
5.3
6
25
8.0/5.3
M50DI08CM2NROR
OFNR
5.8
8
32
8.7/5.8
M50DI12CM2NROR
OFNR
6.3
12
43
9.5/6.3
M50DI24CM2NROR
OFNR
8.3
24
54
12.5/8.3
M50DI48CM2NROR
OFNR
15.4
48
186
23.1/15.4
M50DI72CM2NROR
OFNR
20
72
315
30/20.0
PLENUM
M50DI02CM2NPOR
OFNP
4.4
2
18
6.6/4.4
M50DI04CM2NPOR
OFNP
4.8
4
24
7.2/4.8
M50DI06CM2NPOR
OFNP
5.3
6
30
8.0/5.3
M50DI08CM2NPOR
OFNP
5.8
8
40
8.7/5.8
M50DI12CM2NPOR
OFNP
6.3
12
52
9.5/6.3
M50DI24CM2NPOR
OFNP
8.3
24
64
12.5/8.3
M50DI48CM2NPOR
OFNP
15.4
48
218
23.1/15.4
M50DI72CM2NPOR
OFNP
20
72
347
30/20.0
50/125 MULTIMODE OM3
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50DI02CM3NRAQ
OFNR
4.4
2
15
6.6/4.4
M50DI04CM3NRAQ
OFNR
4.8
4
20
7.2/4.8
M50DI06CM3NRAQ
OFNR
5.3
6
25
8.0/5.3
M50DI08CM3NRAQ
OFNR
5.8
8
32
8.7/5.8
M50DI12CM3NRAQ
OFNR
6.3
12
43
9.5/6.3
M50DI24CM3NRAQ
OFNR
8.3
24
54
12.5/8.3
M50DI48CM3NRAQ
OFNR
15.4
48
186
23.1/15.4
M50DI72CM3NRAQ
OFNR
20
72
315
30/20.0
PLENUM
M50DI02CM3NPAQ
OFNP
4.4
2
18
6.6/4.4
M50DI04CM3NPAQ
OFNP
4.8
4
24
7.2/4.8
M50DI06CM3NPAQ
OFNP
5.3
6
30
8.0/5.3
M50DI08CM3NPAQ
OFNP
5.8
8
40
8.7/5.8
M50DI12CM3NPAQ
OFNP
6.3
12
52
9.5/6.3
M50DI24CM3NPAQ
OFNP
8.3
24
64
12.5/8.3
M50DI48CM3NPAQ
OFNP
15.4
48
218
23.1/15.4
M50DI72CM3NPAQ
OFNP
20
72
347
30/20.0
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | M50DI02CM2NROR | OFNR | 4.4 | 2 | 15 | 6.6/4.4 |
| M50DI04CM2NROR | OFNR | 4.8 | 4 | 20 | 7.2/4.8 | |
| M50DI06CM2NROR | OFNR | 5.3 | 6 | 25 | 8.0/5.3 | |
| M50DI08CM2NROR | OFNR | 5.8 | 8 | 32 | 8.7/5.8 | |
| M50DI12CM2NROR | OFNR | 6.3 | 12 | 43 | 9.5/6.3 | |
| M50DI24CM2NROR | OFNR | 8.3 | 24 | 54 | 12.5/8.3 | |
| M50DI48CM2NROR | OFNR | 15.4 | 48 | 186 | 23.1/15.4 | |
| M50DI72CM2NROR | OFNR | 20 | 72 | 315 | 30/20.0 | |
| PLENUM | M50DI02CM2NPOR | OFNP | 4.4 | 2 | 18 | 6.6/4.4 |
| M50DI04CM2NPOR | OFNP | 4.8 | 4 | 24 | 7.2/4.8 | |
| M50DI06CM2NPOR | OFNP | 5.3 | 6 | 30 | 8.0/5.3 | |
| M50DI08CM2NPOR | OFNP | 5.8 | 8 | 40 | 8.7/5.8 | |
| M50DI12CM2NPOR | OFNP | 6.3 | 12 | 52 | 9.5/6.3 | |
| M50DI24CM2NPOR | OFNP | 8.3 | 24 | 64 | 12.5/8.3 | |
| M50DI48CM2NPOR | OFNP | 15.4 | 48 | 218 | 23.1/15.4 | |
| M50DI72CM2NPOR | OFNP | 20 | 72 | 347 | 30/20.0 | |
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | M50DI02CM3NRAQ | OFNR | 4.4 | 2 | 15 | 6.6/4.4 |
| M50DI04CM3NRAQ | OFNR | 4.8 | 4 | 20 | 7.2/4.8 | |
| M50DI06CM3NRAQ | OFNR | 5.3 | 6 | 25 | 8.0/5.3 | |
| M50DI08CM3NRAQ | OFNR | 5.8 | 8 | 32 | 8.7/5.8 | |
| M50DI12CM3NRAQ | OFNR | 6.3 | 12 | 43 | 9.5/6.3 | |
| M50DI24CM3NRAQ | OFNR | 8.3 | 24 | 54 | 12.5/8.3 | |
| M50DI48CM3NRAQ | OFNR | 15.4 | 48 | 186 | 23.1/15.4 | |
| M50DI72CM3NRAQ | OFNR | 20 | 72 | 315 | 30/20.0 | |
| PLENUM | M50DI02CM3NPAQ | OFNP | 4.4 | 2 | 18 | 6.6/4.4 |
| M50DI04CM3NPAQ | OFNP | 4.8 | 4 | 24 | 7.2/4.8 | |
| M50DI06CM3NPAQ | OFNP | 5.3 | 6 | 30 | 8.0/5.3 | |
| M50DI08CM3NPAQ | OFNP | 5.8 | 8 | 40 | 8.7/5.8 | |
| M50DI12CM3NPAQ | OFNP | 6.3 | 12 | 52 | 9.5/6.3 | |
| M50DI24CM3NPAQ | OFNP | 8.3 | 24 | 64 | 12.5/8.3 | |
| M50DI48CM3NPAQ | OFNP | 15.4 | 48 | 218 | 23.1/15.4 | |
| M50DI72CM3NPAQ | OFNP | 20 | 72 | 347 | 30/20.0 | |
