BREAKOUT CABLE

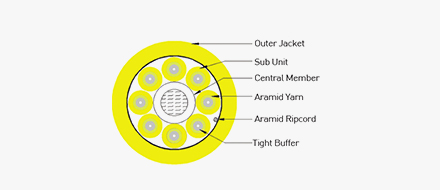

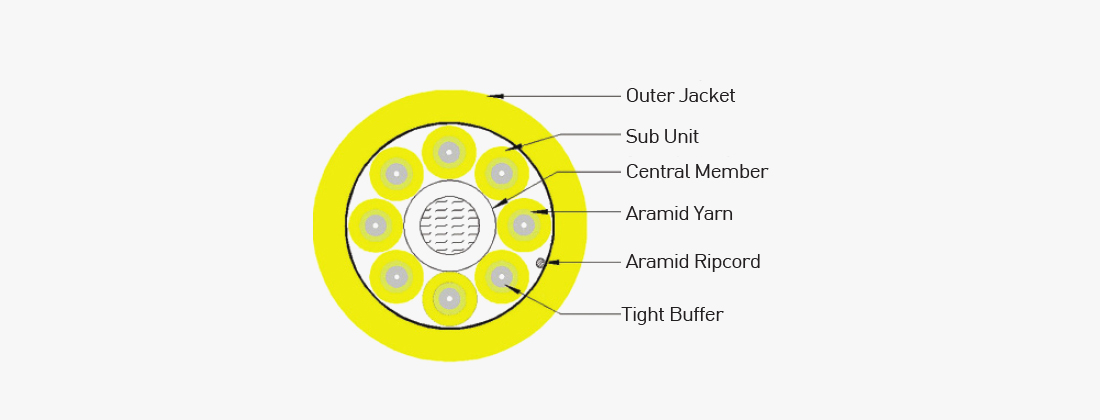

Breakout cable consists of 2mm subunits (other sizes available) with 900μm tight buffers. Combining strength, flexibility and no need for fan-out kits or tubing when terminating, these rugged cables are ideal for indoor and indoor/outdoor applications. OASISCABLE offers Breakout cables from 2-12 fiber constructions with OFNR and OFNP ratings.
FEATURES
- 2.0mm sub-units
- 900um tight buffer
- Flame Ratings - UL1666(Riser) and NFPA262(Plenum)
- Color coded sub-units available as requested
APPLICATIONS
Riser, PlenumSPECIFICATIONS
| ALSO AVAILABLE UPON REQUEST | OFNP | |||
| 50/125 MULTIMODE ClearCurve® OM4 | Storage Temp | -40/+70℃ | Operating Temp | 0/+70℃ |
| Optical fibers compliant with ITU-T G.657.A/B standards | OFNR | |||
| LSZH Jacket, Indoor / Outdoor Breakout | Storage Temp | -40/+70℃ | Operating Temp | -20/+70℃ |
SINGLE MODE OS2(ITU-T G.657.A1)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
S09BK02CA1NRYL
OFNR
8.8
2
57
13.2/8.8
S09BK04CA1NRYL
OFNR
8.8
4
61
13.2/8.8
S09BK06CA1NRYL
OFNR
9
6
75
13.5/9.0
S09BK08CA1NRYL
OFNR
9.6
8
93
14.4/9.6
S09BK12CA1NRYL
OFNR
10.7
12
109
16.1/10.7
PLENUM
S09BK02CA1NPYL
OFNP
8.8
2
64
13.2/8.8
S09BK04CA1NPYL
OFNP
8.8
4
68
13.2/8.8
S09BK06CA1NPYL
OFNP
9
6
83
13.5/9.0
S09BK08CA1NPYL
OFNP
9.6
8
105
14.4/9.6
S09BK12CA1NPYL
OFNP
10.7
12
125
16.1/10.7
62.5/125 MULTIMODE OM1
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M62BK02CM1NROR
OFNR
8.8
2
57
13.2/8.8
M62BK04CM1NROR
OFNR
8.8
4
61
13.2/8.8
M62BK06CM1NROR
OFNR
9
6
75
13.5/9.0
M62BK08CM1NROR
OFNR
9.6
8
93
14.4/9.6
M62BK12CM1NROR
OFNR
10.7
12
109
16.1/10.7
PLENUM
M62BK02CM1NPOR
OFNP
8.8
2
64
13.2/8.8
M62BK04CM1NPOR
OFNP
8.8
4
68
13.2/8.8
M62BK06CM1NPOR
OFNP
9
6
83
13.5/9.0
M62BK08CM1NPOR
OFNP
9.6
8
105
14.4/9.6
M62BK12CM1NPOR
OFNP
10.7
12
125
16.1/10.7
50/125 MULTIMODE OM2
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50BK02CM2NROR
OFNR
8.8
2
57
13.2/8.8
M50BK04CM2NROR
OFNR
8.8
4
61
13.2/8.8
M50BK06CM2NROR
OFNR
9
6
75
13.5/9.0
M50BK08CM2NROR
OFNR
9.6
8
93
14.4/9.6
M50BK12CM2NROR
OFNR
10.7
12
109
16.1/10.7
PLENUM
M50BK02CM2NPOR
OFNP
8.8
2
64
13.2/8.8
M50BK04CM2NPOR
OFNP
8.8
4
68
13.2/8.8
M50BK06CM2NPOR
OFNP
9
6
83
13.5/9.0
M50BK08CM2NPOR
OFNP
9.6
8
105
14.4/9.6
M50BK12CM2NPOR
OFNP
10.7
12
125
16.1/10.7
50/125 MULTIMODE OM3
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50BK02CM3NRAQ
OFNR
8.8
2
57
13.2/8.8
M50BK04CM3NRAQ
OFNR
8.8
4
61
13.2/8.8
M50BK06CM3NRAQ
OFNR
9
6
75
13.5/9.0
M50BK08CM3NRAQ
OFNR
9.6
8
93
14.4/9.6
M50BK12CM3NRAQ
OFNR
10.7
12
109
16.1/10.7
PLENUM
M50BK02CM3NPAQ
OFNP
8.8
2
64
13.2/8.8
M50BK04CM3NPAQ
OFNP
8.8
4
68
13.2/8.8
M50BK62CM3NPAQ
OFNP
9
6
83
13.5/9.0
M50BK08CM3NPAQ
OFNP
9.6
8
105
14.4/9.6
M50BK12CM3NPAQ
OFNP
10.7
12
125
16.1/10.7
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | S09BK02CA1NRYL | OFNR | 8.8 | 2 | 57 | 13.2/8.8 |
| S09BK04CA1NRYL | OFNR | 8.8 | 4 | 61 | 13.2/8.8 | |
| S09BK06CA1NRYL | OFNR | 9 | 6 | 75 | 13.5/9.0 | |
| S09BK08CA1NRYL | OFNR | 9.6 | 8 | 93 | 14.4/9.6 | |
| S09BK12CA1NRYL | OFNR | 10.7 | 12 | 109 | 16.1/10.7 | |
| PLENUM | S09BK02CA1NPYL | OFNP | 8.8 | 2 | 64 | 13.2/8.8 |
| S09BK04CA1NPYL | OFNP | 8.8 | 4 | 68 | 13.2/8.8 | |
| S09BK06CA1NPYL | OFNP | 9 | 6 | 83 | 13.5/9.0 | |
| S09BK08CA1NPYL | OFNP | 9.6 | 8 | 105 | 14.4/9.6 | |
| S09BK12CA1NPYL | OFNP | 10.7 | 12 | 125 | 16.1/10.7 | |
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | M62BK02CM1NROR | OFNR | 8.8 | 2 | 57 | 13.2/8.8 |
| M62BK04CM1NROR | OFNR | 8.8 | 4 | 61 | 13.2/8.8 | |
| M62BK06CM1NROR | OFNR | 9 | 6 | 75 | 13.5/9.0 | |
| M62BK08CM1NROR | OFNR | 9.6 | 8 | 93 | 14.4/9.6 | |
| M62BK12CM1NROR | OFNR | 10.7 | 12 | 109 | 16.1/10.7 | |
| PLENUM | M62BK02CM1NPOR | OFNP | 8.8 | 2 | 64 | 13.2/8.8 |
| M62BK04CM1NPOR | OFNP | 8.8 | 4 | 68 | 13.2/8.8 | |
| M62BK06CM1NPOR | OFNP | 9 | 6 | 83 | 13.5/9.0 | |
| M62BK08CM1NPOR | OFNP | 9.6 | 8 | 105 | 14.4/9.6 | |
| M62BK12CM1NPOR | OFNP | 10.7 | 12 | 125 | 16.1/10.7 | |
50/125 MULTIMODE OM2
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50BK02CM2NROR
OFNR
8.8
2
57
13.2/8.8
M50BK04CM2NROR
OFNR
8.8
4
61
13.2/8.8
M50BK06CM2NROR
OFNR
9
6
75
13.5/9.0
M50BK08CM2NROR
OFNR
9.6
8
93
14.4/9.6
M50BK12CM2NROR
OFNR
10.7
12
109
16.1/10.7
PLENUM
M50BK02CM2NPOR
OFNP
8.8
2
64
13.2/8.8
M50BK04CM2NPOR
OFNP
8.8
4
68
13.2/8.8
M50BK06CM2NPOR
OFNP
9
6
83
13.5/9.0
M50BK08CM2NPOR
OFNP
9.6
8
105
14.4/9.6
M50BK12CM2NPOR
OFNP
10.7
12
125
16.1/10.7
50/125 MULTIMODE OM3
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50BK02CM3NRAQ
OFNR
8.8
2
57
13.2/8.8
M50BK04CM3NRAQ
OFNR
8.8
4
61
13.2/8.8
M50BK06CM3NRAQ
OFNR
9
6
75
13.5/9.0
M50BK08CM3NRAQ
OFNR
9.6
8
93
14.4/9.6
M50BK12CM3NRAQ
OFNR
10.7
12
109
16.1/10.7
PLENUM
M50BK02CM3NPAQ
OFNP
8.8
2
64
13.2/8.8
M50BK04CM3NPAQ
OFNP
8.8
4
68
13.2/8.8
M50BK62CM3NPAQ
OFNP
9
6
83
13.5/9.0
M50BK08CM3NPAQ
OFNP
9.6
8
105
14.4/9.6
M50BK12CM3NPAQ
OFNP
10.7
12
125
16.1/10.7
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | M50BK02CM2NROR | OFNR | 8.8 | 2 | 57 | 13.2/8.8 |
| M50BK04CM2NROR | OFNR | 8.8 | 4 | 61 | 13.2/8.8 | |
| M50BK06CM2NROR | OFNR | 9 | 6 | 75 | 13.5/9.0 | |
| M50BK08CM2NROR | OFNR | 9.6 | 8 | 93 | 14.4/9.6 | |
| M50BK12CM2NROR | OFNR | 10.7 | 12 | 109 | 16.1/10.7 | |
| PLENUM | M50BK02CM2NPOR | OFNP | 8.8 | 2 | 64 | 13.2/8.8 |
| M50BK04CM2NPOR | OFNP | 8.8 | 4 | 68 | 13.2/8.8 | |
| M50BK06CM2NPOR | OFNP | 9 | 6 | 83 | 13.5/9.0 | |
| M50BK08CM2NPOR | OFNP | 9.6 | 8 | 105 | 14.4/9.6 | |
| M50BK12CM2NPOR | OFNP | 10.7 | 12 | 125 | 16.1/10.7 | |
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | M50BK02CM3NRAQ | OFNR | 8.8 | 2 | 57 | 13.2/8.8 |
| M50BK04CM3NRAQ | OFNR | 8.8 | 4 | 61 | 13.2/8.8 | |
| M50BK06CM3NRAQ | OFNR | 9 | 6 | 75 | 13.5/9.0 | |
| M50BK08CM3NRAQ | OFNR | 9.6 | 8 | 93 | 14.4/9.6 | |
| M50BK12CM3NRAQ | OFNR | 10.7 | 12 | 109 | 16.1/10.7 | |
| PLENUM | M50BK02CM3NPAQ | OFNP | 8.8 | 2 | 64 | 13.2/8.8 |
| M50BK04CM3NPAQ | OFNP | 8.8 | 4 | 68 | 13.2/8.8 | |
| M50BK62CM3NPAQ | OFNP | 9 | 6 | 83 | 13.5/9.0 | |
| M50BK08CM3NPAQ | OFNP | 9.6 | 8 | 105 | 14.4/9.6 | |
| M50BK12CM3NPAQ | OFNP | 10.7 | 12 | 125 | 16.1/10.7 | |
