DROP CABLE (Flat)

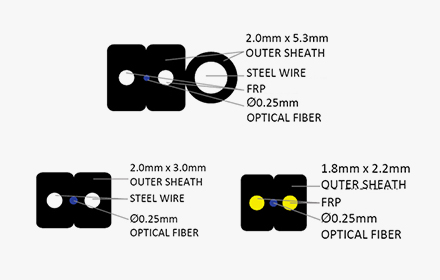

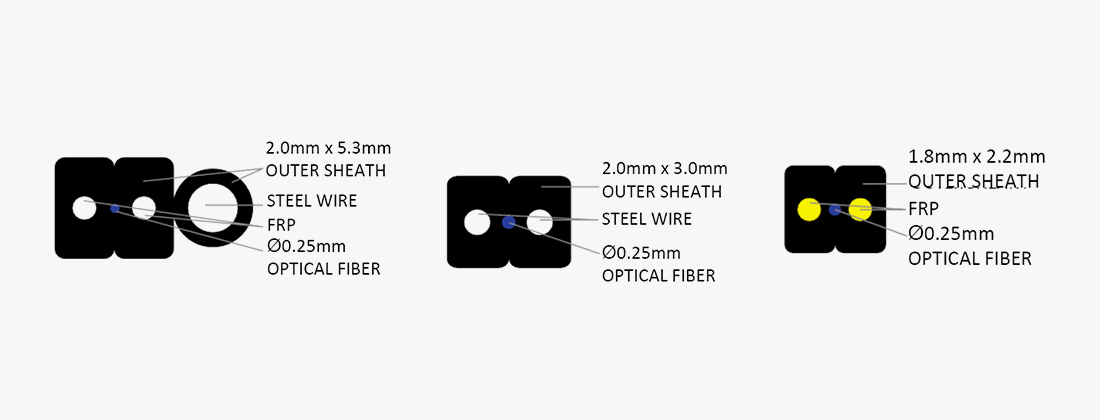

A UV resistant jacket and available without fire code constraints. Black LSZH constructions allow OASIS's drop cables to be used for general outdoor applications while having the flexibility for indoor deployment. Constructions consist of 250μm color coded fibers and FRP or steel wire.
FEATURES
- Single-mode, Light weight, Easy to strip, Low attenuation
- Excellent mechanical & environmental performance
- Sheath materials: PVC, LSZH, TPU & etc.
APPLICATIONS
Aerial, Outdoor, DuctSPECIFICATIONS
| ALSO AVAILABLE UPON REQUEST | OFNP | |||
| 50/125 MULTIMODE ClearCurve® OM4 | Storage Temp | -40/+70℃ | Operating Temp | -40/+70℃ |
| Optical fibers compliant with ITU-T G.657.A/B standards | OFNR | |||
| LSZH Jacket, TPU Jacket | Storage Temp | -40/+70℃ | Operating Temp | -40/+70℃ |
SINGLE MODE OS2(ITU-T G.657.A1)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
S09DF01CA1NLBK1222
LSZH
1.2 x 2.2
1
5.2
6.0/3.0
S09DF02CA1NLBK1222
LSZH
1.2 x 2.2
2
5.2
6.0/3.0
S09DF01CA1NLBK2030
LSZH
2.0 x 3.0
1
11
6.0/3.0
S09DF02CA1NLBK2030
LSZH
2.0 x 3.0
2
11
6.0/3.0
S09DF01CA1NLBK2053
LSZH
2.0 x 5.3
1
20
6.0/3.0
S09DF02CA1NLBK2053
LSZH
2.0 x 5.3
2
20
6.0/3.0
SINGLE MODE OS2(ITU-T G.657.A2)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
S09DF01CA2NLBK1222
LSZH
1.2 x 2.2
1
5.2
6.0/3.0
S09DF02CA2NLBK1222
LSZH
1.2 x 2.2
2
5.2
6.0/3.0
S09DF01CA2NLBK2030
LSZH
2.0 x 3.0
1
11
6.0/3.0
S09DF02CA2NLBK2030
LSZH
2.0 x 3.0
2
11
6.0/3.0
S09DF01CA2NLBK2053
LSZH
2.0 x 5.3
1
20
6.0/3.0
S09DF02CA2NLBK2053
LSZH
2.0 x 5.3
2
20
6.0/3.0
SINGLE MODE OS2(ITU-T G.657.B3)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
S09DF01CB3NLBK1222
LSZH
1.2 x 2.2
1
5.2
6.0/3.0
S09DF02CB3NLBK1222
LSZH
1.2 x 2.2
2
5.2
6.0/3.0
S09DF01CB3NLBK2030
LSZH
2.0 x 3.0
1
11
6.0/3.0
S09DF02CB3NLBK2030
LSZH
2.0 x 3.0
2
11
6.0/3.0
S09DF01CB3NLBK2053
LSZH
2.0 x 5.3
1
20
6.0/3.0
S09DF02CB3NLBK2053
LSZH
2.0 x 5.3
2
20
6.0/3.0
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
| S09DF01CA1NLBK1222 | LSZH | 1.2 x 2.2 | 1 | 5.2 | 6.0/3.0 |
| S09DF02CA1NLBK1222 | LSZH | 1.2 x 2.2 | 2 | 5.2 | 6.0/3.0 |
| S09DF01CA1NLBK2030 | LSZH | 2.0 x 3.0 | 1 | 11 | 6.0/3.0 |
| S09DF02CA1NLBK2030 | LSZH | 2.0 x 3.0 | 2 | 11 | 6.0/3.0 |
| S09DF01CA1NLBK2053 | LSZH | 2.0 x 5.3 | 1 | 20 | 6.0/3.0 |
| S09DF02CA1NLBK2053 | LSZH | 2.0 x 5.3 | 2 | 20 | 6.0/3.0 |
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
| S09DF01CA2NLBK1222 | LSZH | 1.2 x 2.2 | 1 | 5.2 | 6.0/3.0 |
| S09DF02CA2NLBK1222 | LSZH | 1.2 x 2.2 | 2 | 5.2 | 6.0/3.0 |
| S09DF01CA2NLBK2030 | LSZH | 2.0 x 3.0 | 1 | 11 | 6.0/3.0 |
| S09DF02CA2NLBK2030 | LSZH | 2.0 x 3.0 | 2 | 11 | 6.0/3.0 |
| S09DF01CA2NLBK2053 | LSZH | 2.0 x 5.3 | 1 | 20 | 6.0/3.0 |
| S09DF02CA2NLBK2053 | LSZH | 2.0 x 5.3 | 2 | 20 | 6.0/3.0 |
SINGLE MODE OS2(ITU-T G.657.B3)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
S09DF01CB3NLBK1222
LSZH
1.2 x 2.2
1
5.2
6.0/3.0
S09DF02CB3NLBK1222
LSZH
1.2 x 2.2
2
5.2
6.0/3.0
S09DF01CB3NLBK2030
LSZH
2.0 x 3.0
1
11
6.0/3.0
S09DF02CB3NLBK2030
LSZH
2.0 x 3.0
2
11
6.0/3.0
S09DF01CB3NLBK2053
LSZH
2.0 x 5.3
1
20
6.0/3.0
S09DF02CB3NLBK2053
LSZH
2.0 x 5.3
2
20
6.0/3.0
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
| S09DF01CB3NLBK1222 | LSZH | 1.2 x 2.2 | 1 | 5.2 | 6.0/3.0 |
| S09DF02CB3NLBK1222 | LSZH | 1.2 x 2.2 | 2 | 5.2 | 6.0/3.0 |
| S09DF01CB3NLBK2030 | LSZH | 2.0 x 3.0 | 1 | 11 | 6.0/3.0 |
| S09DF02CB3NLBK2030 | LSZH | 2.0 x 3.0 | 2 | 11 | 6.0/3.0 |
| S09DF01CB3NLBK2053 | LSZH | 2.0 x 5.3 | 1 | 20 | 6.0/3.0 |
| S09DF02CB3NLBK2053 | LSZH | 2.0 x 5.3 | 2 | 20 | 6.0/3.0 |
