DUPLEX

홈 > PRODUCTS > DUPLEX

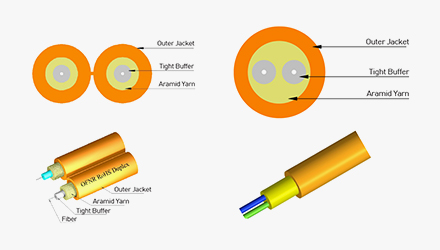

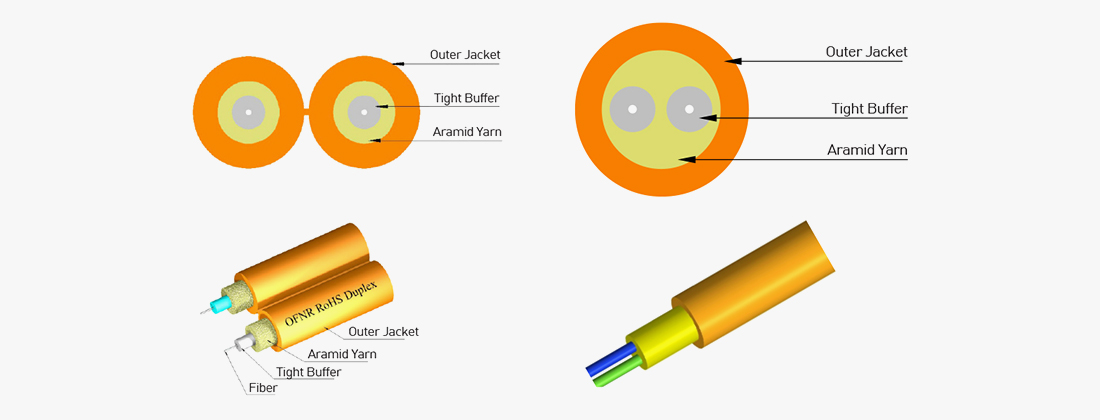

product_03 product_03

Duplex Cables are designed for general patch cord production where consistency and uniformity are vital for fast efficient terminations. Duplex cables are offered in several outside diameter sizes to meet all tooling and termination requirements.

FEATURES
  • 3mm, 2mm, 1.8mm and 1.6mm OD sizes to meet all patch cord applications
  • Available in custom colors
APPLICATIONS
Riser, Plenum

SPECIFICATIONS

ALSO AVAILABLE UPON REQUEST OFNP
Optical fibers compliant with ITU-T G.657.A/B standards Storage Temp -40/+70℃ Operating Temp 0/+70℃
LSZH Jacket OFNR
1.2mm OD sizes Storage Temp -40/+70℃ Operating Temp -20/+70℃

SINGLE MODE OS2(ITU-T G.657.A1) & MULTI MODE(OM1, OM2, OM3, OM4)

Part Number Fiber Type Cable Rating Norminal Diameter
(mm)		 Fiber Count Weight kg/km Bend Radius
(Install/Operate cm)
1.6mm
Zip		 S09DX02CA1NPYL16 SM OFNP 1.6 x 3.2 2 6.4 10mm
S09DX02CA1NRYL16 SM OFNR 1.6 x 3.2 2 5.4 10mm
M62DX02CM1NPOR16 OM1 OFNP 1.6 x 3.2 2 6.4 10mm
M62DX02CM1NROR16 OM1 OFNR 1.6 x 3.2 2 5.4 10mm
M50DX02CM2NPOR16 OM2 OFNP 1.6 x 3.2 2 6.4 7.5mm
M50DX02CM2NROR16 OM2 OFNR 1.6 x 3.2 2 5.4 7.5mm
M50DX02CM3NPAQ16 OM3 OFNP 1.6 x 3.2 2 6.4 7.5mm
M50DX02CM3NRAQ16 OM3 OFNR 1.6 x 3.2 2 5.4 7.5mm
M50DX02CM4NPAQ16 OM4 OFNP 1.6 x 3.2 2 6.4 7.5mm
M50DX02CM4NRAQ16 OM4 OFNR 1.6 x 3.2 2 5.4 7.5mm
Part Number Fiber Type Cable Rating Norminal Diameter
(mm)		 Fiber Count Weight kg/km Bend Radius
(Install/Operate cm)
1.8mm
Zip		 S09DX02CA1NPYL18 SM OFNP 1.8 x 3.6 2 9.1 10mm
S09DX02CA1NRYL18 SM OFNR 1.8 x 3.6 2 8.2 10mm
M62DX02CM1NPOR18 OM1 OFNP 1.8 x 3.6 2 9.1 10mm
M62DX02CM1NROR18 OM1 OFNR 1.8 x 3.6 2 8.2 10mm
M50DX02CM2NPOR18 OM2 OFNP 1.8 x 3.6 2 9.1 7.5mm
M50DX02CM2NROR18 OM2 OFNR 1.8 x 3.6 2 8.2 7.5mm
M50DX02CM3NPAQ18 OM3 OFNP 1.8 x 3.6 2 9.1 7.5mm
M50DX02CM3NRAQ18 OM3 OFNR 1.8 x 3.6 2 8.2 7.5mm
M50DX02CM4NPAQ18 OM4 OFNP 1.8 x 3.6 2 9.1 7.5mm
M50DX02CM4NRAQ18 OM4 OFNR 1.8 x 3.6 2 8.2 7.5mm
Part Number Fiber Type Cable Rating Norminal Diameter
(mm)		 Fiber Count Weight kg/km Bend Radius
(Install/Operate cm)
2.0mm
Zip		 S09DX02CA1NPYL20 SM OFNP 1.95 x 4.1 2 13 10mm
S09DX02CA1NRYL20 SM OFNR 1.95 x 4.1 2 12 10mm
M62DX02CM1NPOR20 OM1 OFNP 1.95 x 4.1 2 13 10mm
M62DX02CM1NROR20 OM1 OFNR 1.95 x 4.1 2 12 10mm
M50DX02CM2NPOR20 OM2 OFNP 1.95 x 4.1 2 13 7.5mm
M50DX02CM2NROR20 OM2 OFNR 1.95 x 4.1 2 12 7.5mm
M50DX02CM3NPAQ20 OM3 OFNP 1.95 x 4.1 2 13 7.5mm
M50DX02CM3NRAQ20 OM3 OFNR 1.95 x 4.1 2 12 7.5mm
M50DX02CM4NPAQ20 OM4 OFNP 1.95 x 4.1 2 13 7.5mm
M50DX02CM4NRAQ20 OM4 OFNR 1.95 x 4.1 2 12 7.5mm
Part Number Fiber Type Cable Rating Norminal Diameter
(mm)		 Fiber Count Weight kg/km Bend Radius
(Install/Operate cm)
3.0mm
Zip		 S09DX02CA1NPYL30 SM OFNP 2.95 x 5.8 2 18 10mm
S09DX02CA1NRYL30 SM OFNR 2.95 x 5.8 2 15 10mm
M62DX02CM1NPOR30 OM1 OFNP 2.95 x 5.8 2 18 10mm
M62DX02CM1NROR30 OM1 OFNR 2.95 x 5.8 2 15 10mm
M50DX02CM2NPOR30 OM2 OFNP 2.95 x 5.8 2 18 7.5mm
M50DX02CM2NROR30 OM2 OFNR 2.95 x 5.8 2 15 7.5mm
M50DX02CM3NPAQ30 OM3 OFNP 2.95 x 5.8 2 18 7.5mm
M50DX02CM3NRAQ30 OM3 OFNR 2.95 x 5.8 2 15 7.5mm
M50DX02CM4NPAQ30 OM4 OFNP 2.95 x 5.8 2 18 7.5mm
M50DX02CM4NRAQ30 OM4 OFNR 2.95 x 5.8 2 12 7.5mm
Part Number Fiber Type Cable Rating Norminal Diameter
(mm)		 Fiber Count Weight kg/km Bend Radius
(Install/Operate cm)
3.0mm
Round		 S09RX02CA1NPYL30 SM OFNP 2.85 2 8.2 10mm
S09RX02CA1NRYL30 SM OFNR 2.85 2 7.7 10mm
M62RX02CM1NPOR30 OM1 OFNP 2.85 2 8.2 10mm
M62RX02CM1NROR30 OM1 OFNR 2.85 2 7.7 10mm
M50RX02CM2NPOR30 OM2 OFNP 2.85 2 8.2 7.5mm
M50DX02CM2NROR30 OM2 OFNR 2.85 2 7.7 7.5mm
M50RX02CM3NPAQ30 OM3 OFNP 2.85 2 8.2 7.5mm
M50RX02CM3NRAQ30 OM3 OFNR 2.85 2 7.7 7.5mm
M50RX02CM4NPAQ30 OM4 OFNP 2.85 2 8.2 7.5mm
M50RX02CM4NRAQ30 OM4 OFNR 2.85 2 7.7 7.5mm
