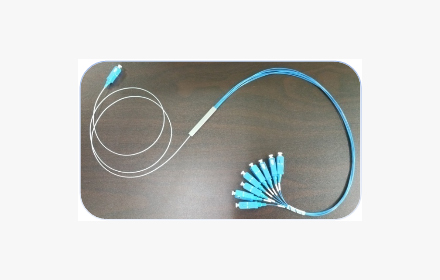

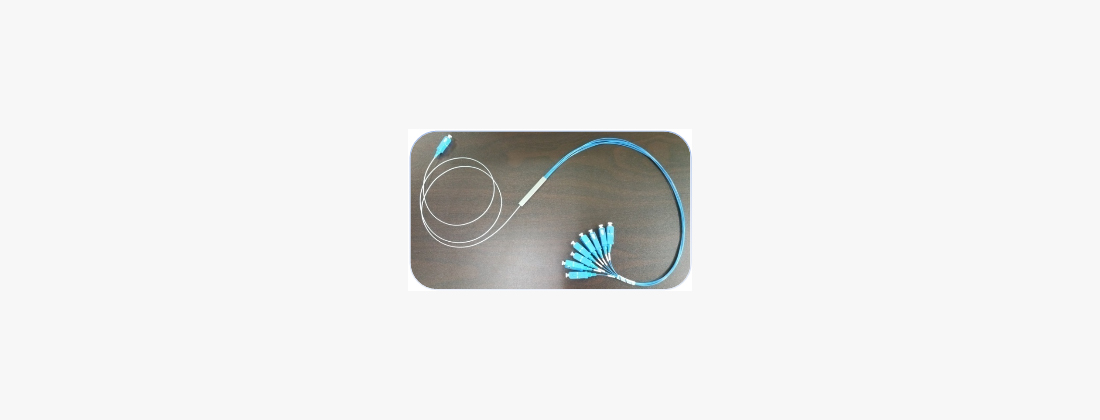

Single Mode Splitters
Single Mode 1×N Splitters divide uniformly optical signals from input ports to multiple outputs. Splitters can also be operated in the reverse direction to combine multiple wavelengths into one fiber.
FEATURES
- Single mode
- Up to 32 outputs standard
- Available in 1×N configurations
APPLICATIONS
Fiber optic equipments & systems, CATV networks, Data communications, Passive optical networks (ATM, WDM, Ethernet)SPECIFICATION
P A R A M E T E R
UNIT
1×4
1×8
1×16
1×32
Operating Wavelength
㎛
1.26 ~ 1.64
Insertion Loss (Max.)
dB
7.5
11.0
14.5
17.4
Uniformity
dB
0.8
1.0
1.5
1.8
PDL
dB
≤ 0.3
≤ 0.4
Return Loss
dB
≥ 55
Directivity
dB
≥ 55
Operating Temp. Range
℃
- 40 to + 85
Package Dimension(L×W×H)
㎜
40 × 4 × 4
40 × 4 × 4
60 × 7 × 4
60 × 7 × 4
| P A R A M E T E R | UNIT | 1×4 | 1×8 | 1×16 | 1×32 |
| Operating Wavelength | ㎛ | 1.26 ~ 1.64 | |||
| Insertion Loss (Max.) | dB | 7.5 | 11.0 | 14.5 | 17.4 |
| Uniformity | dB | 0.8 | 1.0 | 1.5 | 1.8 |
| PDL | dB | ≤ 0.3 | ≤ 0.4 | ||
| Return Loss | dB | ≥ 55 | |||
| Directivity | dB | ≥ 55 | |||
| Operating Temp. Range | ℃ | - 40 to + 85 | |||
| Package Dimension(L×W×H) | ㎜ | 40 × 4 × 4 | 40 × 4 × 4 | 60 × 7 × 4 | 60 × 7 × 4 |
