AIR BLOWN FIBER CABLE

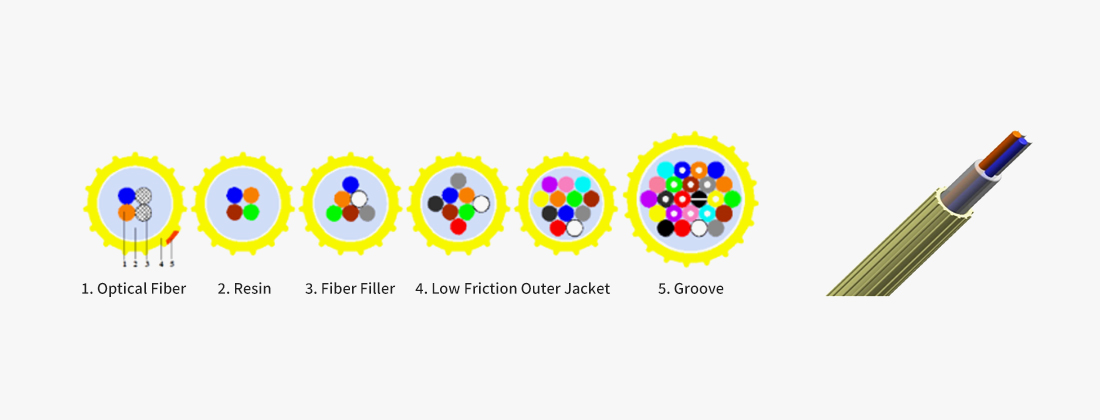

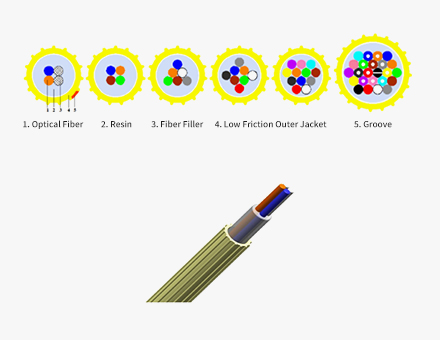

OASIS's Air Blown Fiber Cable is a very small diameter cable for air blown installation into micro-duct. The fibers are coated with a soft acrylate layer as a cushion to provide protection to the fiber. An outer jacket with groove-design gives low friction and best blowing performance to the installation.
FEATURES
- Fiber Type : 250um (G652D/G657A1/G657A2/OM1/OM2/OM3/OM4)
- Inner Layer : Acrylate Resin
- Outer Jacket : Low Friction Halogen Free Plastic (HDPE)
- Fiber Count : 2-24 Cores
APPLICATIONS
Air blown installationSPECIFICATION
ALSO AVAILABLE UPON REQUEST
OFNP
50/125 MULTIMODE ClearCurve® OM4
Storage Temp
-30 / +60℃
Operating Temp
-30 / +60℃
Optical fibers compliant with ITU-T G.657.A/B standards
OFNR
Low friction halogen free HDPE Jacket
Storage Temp
-30 / +60℃
Operating Temp
-30 / +60℃
SINGLE MODE OS2(ITU-T G.657.A1)
Part Number
Cable Rating
Nominal Diameter
(mm)
Fiber Count
Weight
kg/km
Bend Radius
(Install/Operate cm)
S09AB02CA1NLYL12
LSZH
1.15
2
1.0
10.0/5.0
S09AB04CA1NLYL12
LSZH
1.15
4
1.0
10.0/5.0
S09AB06CA1NLYL14
LSZH
1.35
6
1.3
12.0/6.0
S09AB08CA1NLYL16
LSZH
1.55
8
1.8
16.0/8.0
S09AB12CA1NLYL17
LSZH
1.65
12
2.2
16.0/8.0
S09AB24CA1NLYL22
LSZH
2.15
24
3.8
24.0/12.0
SINGLE MODE OS2(ITU-T G.657.A2)
Part Number
Cable Rating
Nominal Diameter
(mm)
Fiber Count
Weight
kg/km
Bend Radius
(Install/Operate cm)
S09AB02CA2NLYL12
LSZH
1.15
2
1.0
10.0/5.0
S09AB04CA2NLYL12
LSZH
1.15
4
1.0
10.0/5.0
S09AB06CA2NLYL14
LSZH
1.35
6
1.3
12.0/6.0
S09AB08CA2NLYL16
LSZH
1.55
8
1.8
16.0/8.0
S09AB12CA2NLYL17
LSZH
1.65
12
2.2
16.0/8.0
S09AB24CA2NLYL22
LSZH
2.15
24
3.8
24.0/12.0
SINGLE MODE OS1(ITU-T G.652.D)
Part Number
Cable Rating
Nominal Diameter
(mm)
Fiber Count
Weight
kg/km
Bend Radius
(Install/Operate cm)
S09AB02CD0NLYL12
LSZH
1.15
2
1.0
10.0/5.0
S09AB04CD0NLYL12
LSZH
1.15
4
1.0
10.0/5.0
S09AB06CD0NLYL14
LSZH
1.35
6
1.3
12.0/6.0
S09AB08CD0NLYL16
LSZH
1.55
8
1.8
16.0/8.0
S09AB12CD0NLYL17
LSZH
1.65
12
2.2
16.0/8.0
S09AB24CD0NLYL22
LSZH
2.15
24
3.8
24.0/12.0
| ALSO AVAILABLE UPON REQUEST | OFNP | |||
| 50/125 MULTIMODE ClearCurve® OM4 | Storage Temp | -30 / +60℃ | Operating Temp | -30 / +60℃ |
| Optical fibers compliant with ITU-T G.657.A/B standards | OFNR | |||
| Low friction halogen free HDPE Jacket | Storage Temp | -30 / +60℃ | Operating Temp | -30 / +60℃ |
| Part Number | Cable Rating | Nominal Diameter (mm) |
Fiber Count | Weight kg/km |
Bend Radius (Install/Operate cm) |
| S09AB02CA1NLYL12 | LSZH | 1.15 | 2 | 1.0 | 10.0/5.0 |
| S09AB04CA1NLYL12 | LSZH | 1.15 | 4 | 1.0 | 10.0/5.0 |
| S09AB06CA1NLYL14 | LSZH | 1.35 | 6 | 1.3 | 12.0/6.0 |
| S09AB08CA1NLYL16 | LSZH | 1.55 | 8 | 1.8 | 16.0/8.0 |
| S09AB12CA1NLYL17 | LSZH | 1.65 | 12 | 2.2 | 16.0/8.0 |
| S09AB24CA1NLYL22 | LSZH | 2.15 | 24 | 3.8 | 24.0/12.0 |
SINGLE MODE OS2(ITU-T G.657.A2)
Part Number
Cable Rating
Nominal Diameter
(mm)
Fiber Count
Weight
kg/km
Bend Radius
(Install/Operate cm)
S09AB02CA2NLYL12
LSZH
1.15
2
1.0
10.0/5.0
S09AB04CA2NLYL12
LSZH
1.15
4
1.0
10.0/5.0
S09AB06CA2NLYL14
LSZH
1.35
6
1.3
12.0/6.0
S09AB08CA2NLYL16
LSZH
1.55
8
1.8
16.0/8.0
S09AB12CA2NLYL17
LSZH
1.65
12
2.2
16.0/8.0
S09AB24CA2NLYL22
LSZH
2.15
24
3.8
24.0/12.0
SINGLE MODE OS1(ITU-T G.652.D)
Part Number
Cable Rating
Nominal Diameter
(mm)
Fiber Count
Weight
kg/km
Bend Radius
(Install/Operate cm)
S09AB02CD0NLYL12
LSZH
1.15
2
1.0
10.0/5.0
S09AB04CD0NLYL12
LSZH
1.15
4
1.0
10.0/5.0
S09AB06CD0NLYL14
LSZH
1.35
6
1.3
12.0/6.0
S09AB08CD0NLYL16
LSZH
1.55
8
1.8
16.0/8.0
S09AB12CD0NLYL17
LSZH
1.65
12
2.2
16.0/8.0
S09AB24CD0NLYL22
LSZH
2.15
24
3.8
24.0/12.0
| Part Number | Cable Rating | Nominal Diameter (mm) |
Fiber Count | Weight kg/km |
Bend Radius (Install/Operate cm) |
| S09AB02CA2NLYL12 | LSZH | 1.15 | 2 | 1.0 | 10.0/5.0 |
| S09AB04CA2NLYL12 | LSZH | 1.15 | 4 | 1.0 | 10.0/5.0 |
| S09AB06CA2NLYL14 | LSZH | 1.35 | 6 | 1.3 | 12.0/6.0 |
| S09AB08CA2NLYL16 | LSZH | 1.55 | 8 | 1.8 | 16.0/8.0 |
| S09AB12CA2NLYL17 | LSZH | 1.65 | 12 | 2.2 | 16.0/8.0 |
| S09AB24CA2NLYL22 | LSZH | 2.15 | 24 | 3.8 | 24.0/12.0 |
| Part Number | Cable Rating | Nominal Diameter (mm) |
Fiber Count | Weight kg/km |
Bend Radius (Install/Operate cm) |
| S09AB02CD0NLYL12 | LSZH | 1.15 | 2 | 1.0 | 10.0/5.0 |
| S09AB04CD0NLYL12 | LSZH | 1.15 | 4 | 1.0 | 10.0/5.0 |
| S09AB06CD0NLYL14 | LSZH | 1.35 | 6 | 1.3 | 12.0/6.0 |
| S09AB08CD0NLYL16 | LSZH | 1.55 | 8 | 1.8 | 16.0/8.0 |
| S09AB12CD0NLYL17 | LSZH | 1.65 | 12 | 2.2 | 16.0/8.0 |
| S09AB24CD0NLYL22 | LSZH | 2.15 | 24 | 3.8 | 24.0/12.0 |
